10Mbps Legacy Ethernet uses Manchester encoding where the clock signal can be deduced from every data bit.
What type of encoding is used in Ethernet?

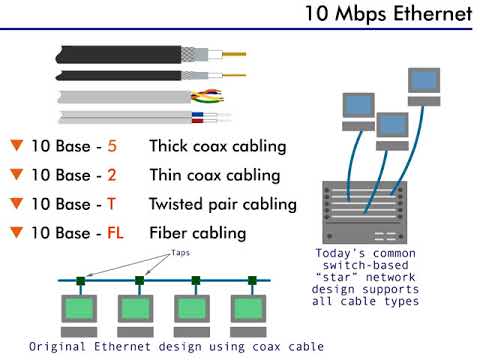

Manchester encoding is used in all 10 Megabit per second Ethernets; for example, 10BASE2 Thin Ethernet, 10BASE5 Thick Ethernet, and 10BASE-T Twisted-Pair Ethernet.
What is Ethernet 10 Mbps?
Ethernet transmits data at up to ten million bits (i.e., 10 megabits) per second (10 Mbps). Fast Ethernet supports up to 100 Mbps, Gigabit Ethernet supports up to 1,000 Mbps, and 10 Gbps Ethernet supports up speeds matching its name (10 gigabits per second or 10,000 Mbps).
Does Ethernet use Manchester encoding?
Manchester encoding is used as the physical layer of an Ethernet LAN, where the additional bandwidth is not a significant issue for coaxial cable transmission, the limited bandwidth of CAT5e cable necessitated a more efficient encoding method for 100 Mbps transmission using a 4b/5b MLT-3 code.
What cable is used for 10 Gbps Ethernet high bandwidth and broadband?
Cat6 Ethernet cables
Cat6 Ethernet cables consist of four twisted pairs of copper wire and 250 MHz of bandwidth, supporting data transfer speeds of up to 10 Gbps (10GBASE-T) for distances up to approximately 180 feet. Cat6 cables use the same RJ-45 jack as Cat5 cables and previous generations of Ethernet cables.
Is Ethernet a NRZ?
For many years the NRZ modulation has been used for Ethernet signals sent over data lines. NRZ stands for “non-return to zero” – a modulation technique for serial communications that uses two voltage levels to represent logic 0 and logic 1. NRZ is used in legacy Ethernet systems for speeds up to 100Gbps.
What data encoding scheme is used in 1 Gbps and 10 Gbps Ethernet Why is it used?
Gigabit Ethernet 1000BASE-X data is encoded twice; 8B10B encoding is used first then NRZ line encoding is applied. 10 Gigabit Ethernet 10GBASE-X data is encoded twice. Sometimes 8B10B encoding is used first, sometimes 64B/66B. The variety of line encoding applied second depends on the fiber used.
What is the minimum cable requirements for 10 Mbps Ethernet?
For 10 MBPS operation, refer to the 10 MBPS cabling specifications help file. Cables must comply with the IEEE 802.3 10BASE-T standard for two-pair, UTP cable. For Fast Ethernet and Gigabit, the cable must be category 5 or 6. For 100BASE-T4, the cable must be category 3 or higher.
What is baud rate of the standard 10 Mbps Ethernet?
20 megabaud
11. What is the baud rate of the standard 10-Mbps 802.3 LAN? The Ethernet uses Manchester encoding, which means it has two signal periods per bit sent. The data rate of the standard Ethernet is 10 Mbps, so the baud rate is twice that, or 20 megabaud.
Is a 10 Mbps fast internet?
6-10 mbps: Usually an excellent Web surfing experience. Generally quick enough to stream a 1080p (high-def) video. 10-20 mbps: More appropriate for a “super user” who wants a reliable experience to stream content and/or make fast downloads.
What is NRZ encoding?
A non-return-to-zero (NRZ) line code is a binary code in which ones are by usually represented a positive voltage, while zeros are represented by some other significant condition, usually a negative voltage. There are just two levels and no pauses between bauds.
What is Manchester code used for?
Manchester code ensures frequent line voltage transitions, directly proportional to the clock rate; this helps clock recovery. The DC component of the encoded signal is not dependent on the data and therefore carries no information.
Why is Manchester encoding better than NRZ?
Manchester is an NRZ encoding that is exclusively-ORed with the clock. This provides at least one transition per bit. NRZI also uses a transition in the middle of the clock cycle, but this only occurs when there is a 1 value. Manchester makes clock recovery easier.
Which protocol is having a maximum of 10 Mbps speed?
10BASE-T is an Ethernet standard for local area networks and one of several physical media specified in the Institute of Electrical and Electronics Engineers (IEEE) 802.3 standard. 10BASE-T supports 10 megabits per second (Mbps) transmission speed over twisted-pair cabling with a maximum length of 100 meters (m).
Which cable has capacity of 10 Mbps data transfer speed?
Cat5e can support network operating speeds of 10Mbps, 100Mbps or 1000Mbps. The gigabit rates are the maximum speed for Cat5e cable.
In which mode does 10 Gigabit Ethernet runs?
full-duplex mode
The 10 GbE version of the traditional Ethernet operates in full-duplex mode, enabling the transmission of data in both directions simultaneously on the same signal carrier.
What is PAM4 and NRZ?
Currently, there are two different signal modulation techniques examined for next-generation Ethernet: non-return to zero (NRZ), and pulse-amplitude modulation 4-level (PAM4). This article will take you through these two modulation techniques and compare them to find the optimal choice for 400G Ethernet.
What is NRZ and RZ coding?
The RZ (Return to Zero) signal transmission of a logic “1” will always begin at zero and end at zero. Whereas NRZ (Non Return to Zero) signal transmission of a logic “1” may or may not begin at zero and end at zero.
Why it is called NRZ?
NRZ (non-return-to-zero) refers to a form of digital data transmission in which the binary low and high states, represented by numerals 0 and 1, are transmitted by specific and constant DC (direct-current) voltage s.
Which encoding scheme is used in Gigabit Ethernet?
Gigabit Ethernet actually uses PAM-5, a five level encoding scheme. The “fifth” level is used for additional synchronization as well as error detection/error correction. Note that the signal timing is 8 nsec which is exactly the same value as we encountered in Fast Ethernets 4B-5B encoding.
What is polar and bipolar encoding?
In the case of a unipolar scheme, all of the signal levels are present either below or above the axis. In the case of Polar Schemes, we have voltages on both given sides of an axis. In the case of a bipolar scheme, we have three voltages: negative, positive, and zero.
